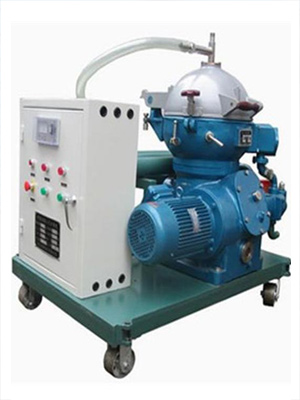

Disc Oil Centrifuge

Disc Stack Centrifuges are widely used in various industries to keep service oil in good condition. The system maintains oil dry and clean, ensuring safe operation of the equipment.

Centrifugal Separator is especially suitable for oils which contain high water content and coarse mechanical impurities,such as turbine lube oil, marine fuel oil, etc.

  • Four models available to accommodate various flow rates
  • Separating moisture and particulates simultaneously
  • Fluid cleanliness grade (NAS) to 6 or better
  • No filtration media needed, low operation cost
  • Low watt density heating
  • Interlocked preventive mechanism
  • Fully automatic operation
  • Easy maintenance
  • Simple, compact and robust design

Item

COS-100

COS-80

COS-50

COS-20

Power supply

380V/50HZ

Flow rate

6000L/H

4800L/H

3000L/H

1200L/H

Motor Power

7.5KW

5.5KW

4.0KW

4.0KW

  Inlet caliber

1″

1″

1/2″

3/8″

Sediment storage

6530cm3

4160cm3

2000cm3

950cm3

Metering Pump

3HP

2HP

1.5HP

1HP

Centrifuge speed

≥4250rpm

≥5000rpm

≥6000rpm

≥6500rpm

Working pressure

0.6—0.7Mpa

Maximum suction (M)

≥0.4

Lift(M)

15

Water Content

≤100PPM

Impurity size

≤5-1µm

Cleanness

≤NAS6-4

Particulate contamination

≤4( SAE749D)

Start-up pressure

0.35 ~0.40Mpa

Dirt holding capacity

Rolling drum contains 1kg,Dirt holding contains 5kg
