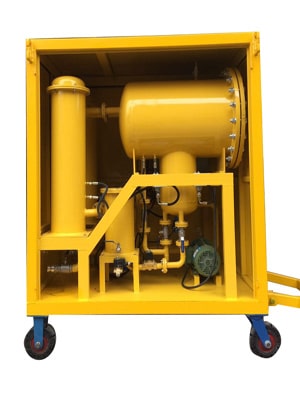

Oil Coalescing System

CSP series oil purifier adopts advanced coalescence separation technology, and can rapidly remove water contents from various kinds of oil without heating. Therefore, the CSP Oil Coalescence Separation Purifier is especially suitable for conditioning fuels such as diesel, kerosene, etc, and besides the light oils, CSP oil purification system is also often used to keep turbine oil clean and dry.

Water contents and foreign particulates find their way into turbine oil during storage and operation, and these containments cause oxidation process, which in turn produce sludge and varnish to accumulate in the turbine system.

The solution is to keep oil clean and dry, and equipped with high efficiency coalescence & particulate filtration element, our CSP oil coalescing purification system can rapidly remove water and solid contaminants from oil. For oils that contain high water contents, the separation efficiency of CSP Coalescence Separation Oil Purifier is much higher than centrifuge or vacuum type oil purifier.

SKU: CSP series

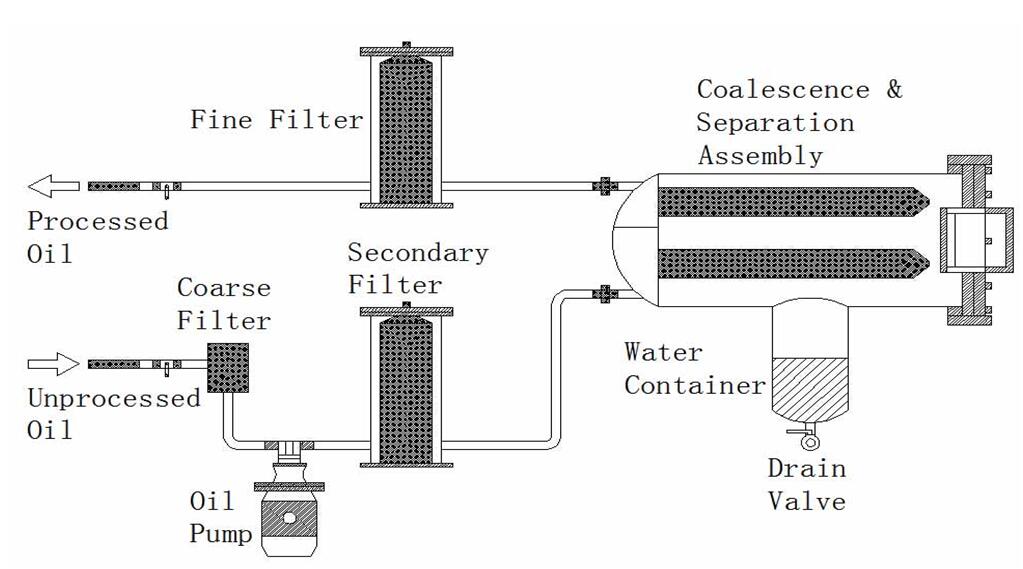

  • Combination of coalescence, separation & solids filtration
  • Rapid free & emulsified water removal
  • Automatic pressure alarm system
  • Automatic overload protection mechanism
  • Multi monitoring system
  • Interlocked protection design
  • Suitable for in-line continuous processing
  • No heating and energy-saving
  • Easy & reliable performance
Model Unit CSP-25 CSP-50 CSP-100 CSP-150 CSP-200
Flow Rate L/min 25 50 100 150 200
Max Pressure MPa 0.6
Coarse Filter um 80 (Optional 100,60)
Secondary Filter um 20 (Optional 40,10)
Fine Filter um 5  (Optional 10,3)
Water Removal PPM ≤80
Voltage VOLT 380v,50Hz,3Phase or Customizable
Motor KW 0.75 1.5 2.2 4 5
Weight KG 300 540 700 820 950
Dimension L*W*H(cm) 120x60x120 160x88x140 180x106x150 210x110x160 250x120x180
