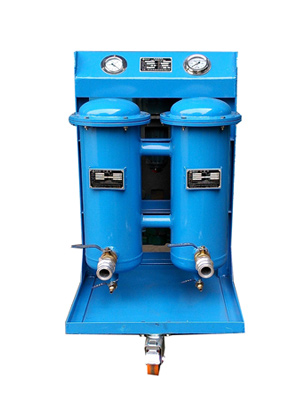

Portable Oil Purifier
KLEANOIL PFC series Portable Oil Purifier is designed for oils that mainly contaminated by mechanical impurities, debris or solid particulates. The oil filter cart can be two or three stage filtration design, and heaters can also be added for processing high viscosity oil, and make ensure smooth flow.
- Flow rate options ranging from 600 to 18,000 liter/hour
- High efficient filtration media
- Over-pressure protection mechanism
- Light, compact and robust design
- Unattended automatic operation
- Easy maintenance
- Low watt density heating (optional)
| Item | Unit | PFC-10 | PFC-30 | PFC-50 | PFC-100 | PFC-200 | PFC-300 |
| Flow Rate | l/h | 600 | 1800 | 3000 | 6000 | 12000 | 18000 |
| Lift | m | 5 | 8 | 8 | 10 | 15 | 15 |
| Cleanness | NAS | 7 | 6 | 6 | 6 | 6 | 5 |
| Motor Power | KW | 0.75 | 0.75 | 2.2 | 3 | 4 | 6 |
| Power Supply | 380V 3Ph 50HZ（Customizable） | ||||||
| Weight | KG | 120 | 150 | 170 | 200 | 230 | 250 |
Note: The technical data are for reference only. We reserve the right to make changes in the course of technical development of the product.
