Vacuum Pumping Transformer Evacuation System

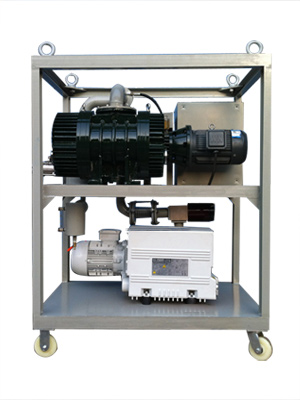

KLEANOIL VTES series Transformer Evacuation Systems are mainly used in the electrical industry for evacuating transformer tanks. The equipment can deal with different gaseous and liquid media, and pumping speed and operating vacuum limit can be customized. The multi-stage vacuum pump skid offered by us consist of one or more Roots pumps in combination with backing pump, so VTES vacuum pumping unit has adequate capacity to handle moisture discharge from transformers of different sizes.
The equipment can be mobile type with castors or trailer at base, and lifting hooks can be attached as required.
- Quick starting, high pumping rate, stable performance, easy-handling
- Powerful combination of rotary vane vacuum pump and mechanical boosters
- Vacuum gauge is used to meter and control vacuum of pumped container
- Fully-automatic operation with lamps indicating the working condition
- Good design, low noise, less energy expenditure, economical solution
Optional:
- Outdoor weather-proof housing
- Trailer mounted type to increase mobility
- Explosion-proof type
- PLC & HMI touch panel control
- Customizable design, material and components
| Name | Unit | VTES-70 | VTES-150 | VTES-300 | VTES-600 | VTES-1200 | |
| Pumping Rate | L/S | 70 | 150 | 300 | 600 | 1200 | |
| Ultimate Vacuum | Pa | ≤7 | ≤7 | ≤7 | ≤5 | ≤5 | |
| Operating Vacuum | Pa | ≤133 | |||||
| Pumping Stage | No. | 2 | 2 | 2 | 2 | 3 | |
| Net Weight | Kg | 450 | 600 | 900 | 1200 | 1500 | |
| Overall Dimensions | Length | mm | 1000 | 1200 | 1200 | 1300 | 1500 |
| Width | mm | 600 | 650 | 700 | 800 | 1000 | |
| Height | mm | 1400 | 1500 | 1600 | 1800 | 1900 | |
Note: The technical data are for reference only. We reserve the right to make changes in the course of technical development of the product.
