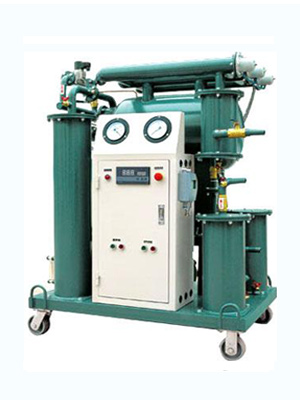

Transformer Oil Filtration Machine

KLEANOIL SVTP series Vacuum Transformer Oil Filtration Machines remove water contents, gases, and solid contaminants from insulating fluids, recovering oil dielectric strength (BDV).

SVTP Transformer oil purifier also helps dry out moisture inside cellulose insulation & winding. Particulate impurities are separated gradually, from coarse particles to tiny ones, as they pass the filter assembly. The filter fineness can be customized according to a client request.

SVTP transformer oil processing system has a compact design. The vacuum oil degasifier can be encased and mounted on a mobile trailer for on-site field work at power station, electrical substations , and where transformer maintenance is needed. Besides oil-immersed transformers, SVTP insulating oil purifier can also be applied to maintain oils used in other attendant electrical equipment, such as regulators, reactors, circuit breakers, switchgear, etc.

SKU: SVTP Series
  • Various flow rates from 600 to 18000 liter/hour
  • Vacuum dehydration and degasification
  • Low watt density heater
  • Duplex 3D evaporation technology
  • Removes moisture down to 5 PPM and less
  • Remove gas contents down to 0.2% by volume
  • Three stage filtration arrangement
  • Remove 99.5% particulates larger than 1 micron
  • Optical fluid level control system
  • Interlocked preventive mechanism

Optional:

  • Outdoor weather-proof enclosure

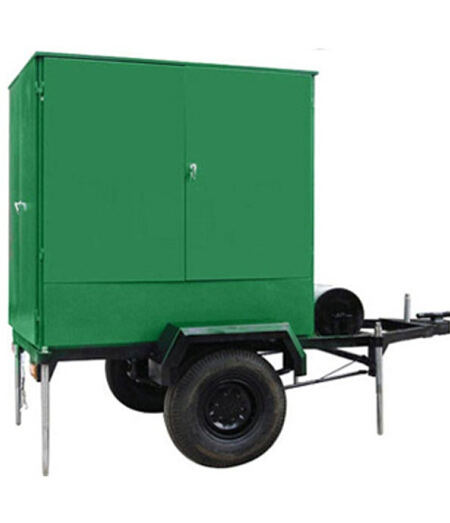

  • Trailer mounted type to increase mobility
  • Explosion-proof type
  • HMI touch screen & PLC control
  • Customizable design, material and components
Item Unit SVTP-10 SVTP-20 SVTP-30 SVTP-50 SVTP-100 SVTP-150 SVTP-200 SVTP-300
Flow Rate L/H 600 1200 1800 3000 6000 9000 12000 18000
Vacuum Degree MPa

-0.06 ~ -0.095

Working Pressure MPa

≤0.5

Breakdown Volt. KV

>50

Water Content PPM

≤5

Gas Content %

≤0.2

Particles Size μm

≤1

Temperature Range

40-65

Power Supply

380V, 50Hz, 3Ph ( Customizable )

Working Noise dB(A)

≤65~85

Heating Power kW 12 18 24 45 72 90 135 180
Total Power kW 15 21 27 48.5 78 96 143 191
Inlet (outlet)Caliber mm 25 25 25 32 42 50 50 60
Weight kg 320 400 480 600 800 1000 1200 1500
Dimension Length mm 1050 1100 1150 1200 1500 1600 1700 1800
Width mm 750 850 900 950 1000 1100 1200 1300
Height mm 1300 1400 1450 1500 1600 1700 1800 1900



Note: The technical data are for reference only. We reserve the right to make changes in the course of technical development of the product.

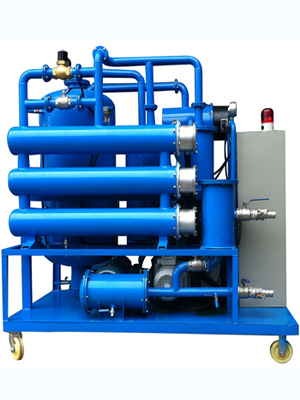

transformer oil filtration processing
